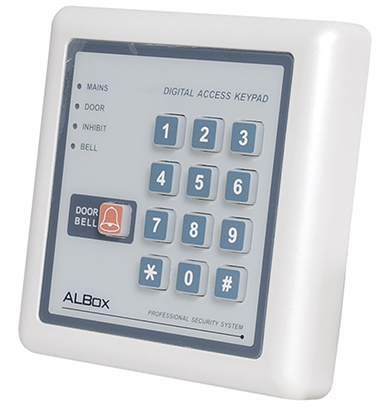

Keypad System (SCK12W)

  ↵

• Weatherproof,  Back-lit, Self Contained
• 3 Output Dual Relay Keypad System
• Stand-alone or Interlock Door Strike & Security Control
• Operating Voltage: 12 - 24 AC/DC
• Operating Current: 15 - 100 mA
• Relay Contact Rating: Relay 1: 30V DC/ 5A; Relay 2: 30V DC/ 1A; Door Bell Relay: 30V DC/ 1A
• Open Collector Outputs: 24V DC/ 100 mA Sink Max. Outputs 3 Key Active & Duress
• User Codes in Multi-User Mode: 100 for Output 1, 10 Each for Output 2 & 3
• User Code Combinations: 10.000 in Single User Mode, 111,110,000 in Multi-User Mode
• Code Length: 4 Digits for Single User Mode, 4 - 8 Digits for Multi-User Mode
• Relay Output: Start/ Stop or Timer 1 - 999 seconds
• Dimension (mm): 117 x 117 x 27
• Weatherproof: IP-54
• Back-lit: 2 Brightness Levels
• Case Colour: Pearl Silver White
