Features

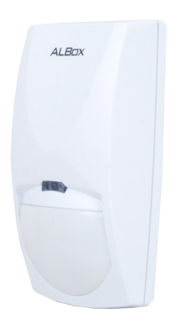

- The Micro X is a compact dual-element motion detector offering excellent detection based on combined PIR and microwave technologies.
- Microprocessor based signal processing.
- Dual technology
- DRO patch antenna
- Microwave sensitivity adjustment trimmer
- Temperature compensation
- Fluorescent light filter (50/60Hz)
- Model: DT110-N
- Supply Voltage: 8.2 - 16V
- Active Current: 25.5mA
- Alarm Period: 2 sec. (± 5sec)
- Tamper Switch: N.C 28V DC 0.1A
- RFI Protection: 30V/ m, 10-100 MHZ
- LED Indicator: LED is on during alarm
- Alarm Output: N.C 28V DC 0.1A
- EMI/ Protection: 50.000 of electrical
- Standby Current: 18mA
- Warm-up Period: 60 sec (± 5sec) ric sensor or mechanical sensor
- Dimensions (mm): 115 x 625 x 41
User Manual: https://tinyurl.com/Manual-DT110N
